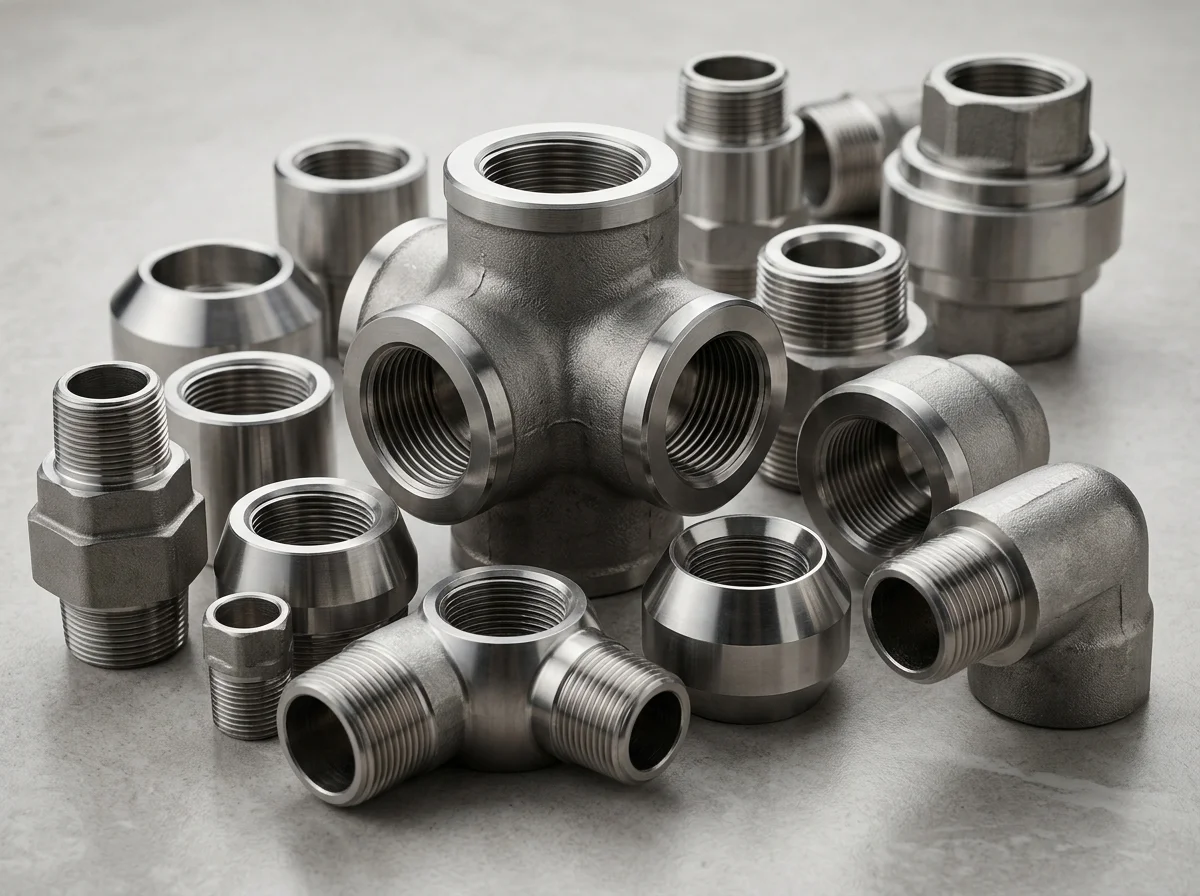

Elbows redirect flow without breaking pressure integrity, and the radius of that bend changes everything downstream of it. Long Radius (LR) and Short Radius (SR) elbows solve different problems, from cutting pressure drop across long runs to fitting bends into congested skid layouts. For systems built with Super Duplex Steel S32760 Pipe Fittings, the LR versus SR choice affects flow efficiency, turbulence and pipe footprint, and picking the wrong one costs money later in pump energy or rework.
Understanding Long Radius and Short Radius Elbows
A Long Radius elbow bends at a radius equal to 1.5 times the nominal pipe diameter, producing a gentler curve that keeps flow closer to laminar. A Short Radius elbow bends at 1D, the same as the pipe diameter, creating a tighter turn that saves space but resists flow more sharply. For a 6-inch pipe, this means a 9-inch bend radius for LR against 6 inches for SR. This 1.5D versus 1D gap drives every performance difference below, whether the fitting is machined from super duplex stainless steel S32760 or another grade, and it shapes duplex pipe fitting selection at the design stage.
Long Radius vs Short Radius Elbows: Key Differences
Eight factors separate LR and SR elbows in real operating conditions, and each shifts the balance toward a specific application. The table below compares these parameters side by side, making it easy to select the right fitting for your piping system.
| Parameter | Long Radius (LR) | Short Radius (SR) |
| Radius of Curvature | 1.5D | 1D |
| Flow Characteristics | Smoother, uniform flow | Uneven velocity profiles |
| Pressure Drop | 15 to 20 percent lower | Higher |
| Turbulence | Minimal | Elevated near outer wall |
| Space Requirement | Greater footprint | 33 percent less than LR |
| Wear Resistance | Distributed across the surface | Concentrated at the outer radius |
| Installation | More layout planning is needed | Faster in compact assemblies |
| Typical Applications | Long-distance, high-flow lines | Skid-mounted, retrofit projects |
Why Super Duplex Steel S32760 Is Preferred for Pipe Fittings
Super Duplex Steel S32760 pairs a duplex austenitic-ferritic microstructure with tensile strength well above standard austenitic grades, allowing thinner walls without sacrificing pressure rating. Its high chromium and molybdenum content resists chloride attack in seawater and brine service, a common failure point for 316L fittings. Pitting resistance equivalent numbers above 40 give super duplex pipe fittings in this grade dependable performance in crevice-prone welded joints, making S32760 a repeated choice among super duplex pipe fittings manufacturers supplying offshore risers and subsea manifolds.
When to Choose a Long Radius Elbow
Long Radius elbows suit systems where minimizing pressure loss and turbulence matters more than conserving space along the run.
Oil and Gas Pipelines
Long-distance crude and gas transport lines rely on LR elbows to keep pumping costs down, while reduced turbulence limits internal erosion.
Chemical Processing
Process lines carrying corrosive or abrasive media benefit from the distributed wear pattern of LR elbows, extending fitting life through continuous production runs.
Offshore Platforms
LR geometry is used for subsea and topside piping on offshore installations because it has a lower pressure drop, and this is important when pumping fluids over long distances.
High-Flow Process Lines
LR elbows help prevent cavitation and flow separation to keep the system within safe limits, where the flow rates are above standard design velocities.
Marine Systems
Ballast, cooling, and firewater lines on vessels use LR elbows to handle high-volume seawater flow with minimal turbulence and reduced noise.
When to Choose a Short Radius Elbow
Short Radius elbows earn their place wherever floor space, headroom, or enclosure size limits how much run a system can dedicate to a bend.
Compact Piping Layouts
Buildings with limited clearance depend on SR elbows to route piping through tight corridors without sacrificing flow capacity beyond design limits.
Skid-Mounted Equipment
Pre-fabricated skids demand compact piping to fit within transport dimensions, and SR elbows shrink each bend’s footprint to meet shipping limits.
Pump Rooms
Dense equipment arrangements in pump rooms leave little room for wide-radius bends, so SR elbows let engineers route lines around obstructions.
Retrofit Projects
Existing plant layouts often lack space for LR geometry. SR elbows allow engineers to modify routes without relocating structural supports nearby.
Space-Constrained Installations
Offshore modules and confined mechanical rooms benefit from the reduced installation length of SR elbows, freeing space for other equipment.
Factors to Consider Before Selecting an Elbow
Six practical factors determine whether a Long Radius or Short Radius elbow fits a given piping system correctly.
- Available installation space often decides the choice before any performance calculation begins.
- Flow rate above design thresholds usually favors Long Radius elbows to avoid turbulence and cavitation risk.
- Whether the added footprint of an LR elbow is worth the trade-off will depend on the pressure drop requirements of the entire network.
- Long Radius elbows are better than Short Radius elbows from a maintenance point of view when used in an abrasive service, since the wear is more evenly distributed around the bend.
- Elbow geometry and material grade are both influenced by the operating environment (such as exposure to seawater or corrosive chemicals).
- The system design standards, such as dimensional requirements of ASME B16.9, define which elbow types suit a given project scope.
Conclusion
Long Radius elbows are the standard for long, high-flow or corrosive service lines, minimising pressure drop and turbulence. Short-radius elbows conserve space in confined or retrofit installations where layout considerations dominate over flow optimization. The right option depends on the system setup, flow needs and available space and Super Duplex Steel S32760 Pipe Fittings provide the strength and corrosion resistance both setups need for tough industrial applications.
