Selecting the right fitting material determines whether a piping system runs for twenty years or fails within five. Standard 304 and 316 stainless steel handle plenty of industrial service, but lose that protection fast once chloride concentration climbs. 254 SMO pipe fittings fill that gap, holding up in seawater, brine, and acidic process streams that would pit or crack a 316L fitting within months. Understanding when the upgrade pays off, rather than defaulting to it everywhere, keeps equipment reliability and procurement budgets in check.
What Are 254 SMO Pipe Fittings?

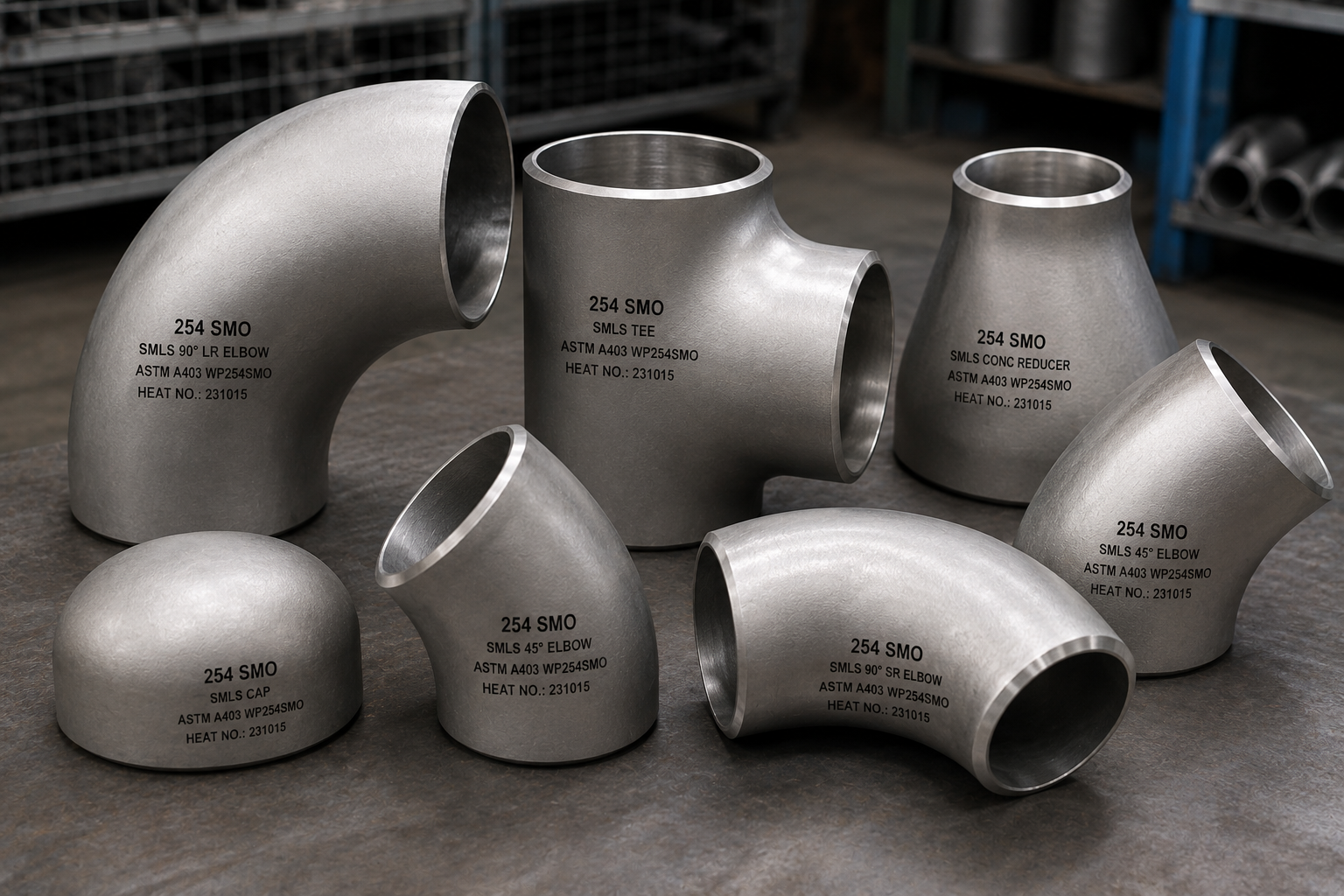

254 SMO is a high-alloy austenitic stainless steel, sometimes called 6Mo, built around chromium, nickel, and molybdenum levels well above what standard 300-series grades carry. That composition pushes its corrosion resistance closer to nickel alloy territory while keeping fabrication costs lower than a true nickel-based fitting. Suppliers stock it as elbows, tees, reducers, crosses, end caps, and swage nipples in both seamless and welded construction, covering the same fitting types buyers already source in 316L.
Key Material Properties of 254 SMO Pipe Fittings
The alloy carries roughly 20% chromium, 18% nickel, and 6% molybdenum, plus nitrogen additions that boost pitting resistance further. Weldability stays close to standard austenitic grades, so fabricators don’t need specialized procedures beyond controlling heat input and filler selection. Mechanical strength runs higher than 316L at comparable wall thickness, which sometimes allows a lighter fitting for the same pressure rating.
How 254 SMO Pipe Fittings Differ from Standard Stainless Steel Fittings
The gap between the two materials widens sharply once chloride exposure or aggressive chemistry enters the picture.
Corrosion Resistance Comparison
316L stainless steel starts losing pitting resistance once chloride concentration passes roughly 1,000 ppm at ambient temperature. 254 SMO’s higher molybdenum and nitrogen content pushes that threshold several times higher, and it resists crevice corrosion in gasketed joints where 316L often initiates attack within a single season.
Strength and Durability
Minimum tensile strength on 254 SMO typically runs above 650 MPa, noticeably ahead of 316L’s roughly 485 MPa baseline. That extra margin holds up under cyclic pressure loading in process lines that see frequent startup and shutdown cycles.
High-Temperature and Pressure Performance
254 SMO retains mechanical properties better than 316L in elevated-temperature chloride service, though neither grade is a true high-temperature alloy above 300°C. For high-pressure systems handling aggressive media, the higher base strength allows tighter design margins without derating the fitting.
When Should You Choose 254 SMO Pipe Fittings?
Four operating conditions consistently justify the material upgrade over standard stainless steel.
High-Chloride Process Environments
Seawater handling systems and brine or salt-processing lines expose fittings to chloride levels that overwhelm 316L within a short service window. 254 SMO’s resistance threshold covers most seawater applications without requiring a full nickel alloy upgrade.
Highly Corrosive Chemical Processing
Acidic and aggressive chemical media, including bleaching liquors and mixed acid streams, degrade standard stainless steel joints faster than the rest of the piping run. Fittings see concentrated stress at welds and threaded connections, making them the first failure point.
Offshore and Marine Installations
Continuous exposure to saltwater spray and humid, salt-laden air accelerates corrosion on any exposed fitting. Offshore platforms specify 254 SMO precisely because replacement access is limited and unplanned downtime carries a steep cost.
Critical Industrial Piping Systems
Systems where downtime carries a direct production loss, such as continuous chemical reactors, justify the material premium through avoided shutdown costs alone. Extended service life reduces how often the line needs isolation for fitting replacement.
Industries That Commonly Use 254 SMO Pipe Fittings
Offshore oil and gas, chemical processing plants, desalination facilities, and marine engineering account for most 254 SMO fitting demand. Pulp and paper mills specify it in bleaching sections where chlorine dioxide attacks standard stainless steel quickly, and power generation plants use it in flue gas and cooling water systems carrying high chloride loads.
Advantages of Choosing 254 SMO Pipe Fittings
Its resistance to pitting, crevice corrosion and stress corrosion cracking are much beyond 316L in the same service, which means a longer operating life with less unscheduled shutdowns. Maintenance intervals are extended and lifespan cost will often be lower than ordinary stainless steel when you factor in the replacement work and down time with the higher original material cost.
Factors to Consider Before Selecting 254 SMO Pipe Fittings
Process Media Compatibility
Evaluate the exact chloride concentration, pH, and temperature of the operating fluid before specifying. 254 SMO handles most seawater and mild chemical service well, but extremely aggressive acids may still call for a nickel alloy fitting instead.
Operating Temperature and Pressure
Confirm the fitting’s rated pressure at actual service temperature, since strength derates as temperature climbs. Matching the material to real operating conditions, not just ambient-temperature datasheet values, avoids an undersized selection.
Project Budget vs Lifecycle Cost
254 SMO fittings cost more upfront than 316L equivalents, sometimes by a wide margin depending on size and form. Weighing that premium against avoided replacement cycles and downtime usually favors the upgrade in genuinely corrosive service.
Applicable Industry Standards and Specifications
ASTM A403 governs most wrought 254 SMO fittings, with UNS S31254 and the European equivalent 1.4547 covering material certification. Confirming the specification matches project engineering requirements avoids a rejected shipment at inspection.
Common Mistakes to Avoid When Choosing Pipe Fittings
Selecting fittings on initial purchase price alone ignores the replacement and downtime costs that follow a premature failure. Underestimating chloride concentration in the actual process stream, rather than a generic industry average, leads to specifying 316L where 254 SMO was required. Ignoring operating temperature and pressure when comparing datasheets produces fittings that look adequate on paper but underperform in real service. Overlooking long-term maintenance costs during the budget exercise skews the comparison toward the cheaper, shorter-lived option.
Conclusion
254 SMO pipe fittings earn their place wherever chloride exposure, aggressive chemical media, or offshore conditions push standard stainless steel past its working limits. The right material choice depends on actual process chemistry, temperature, and pressure, not a blanket upgrade or a blanket downgrade based on cost alone. Evaluating these application-specific requirements before specification helps ensure a piping system that runs reliably, resists corrosion where it matters most, and delivers lower total cost across its service life.
